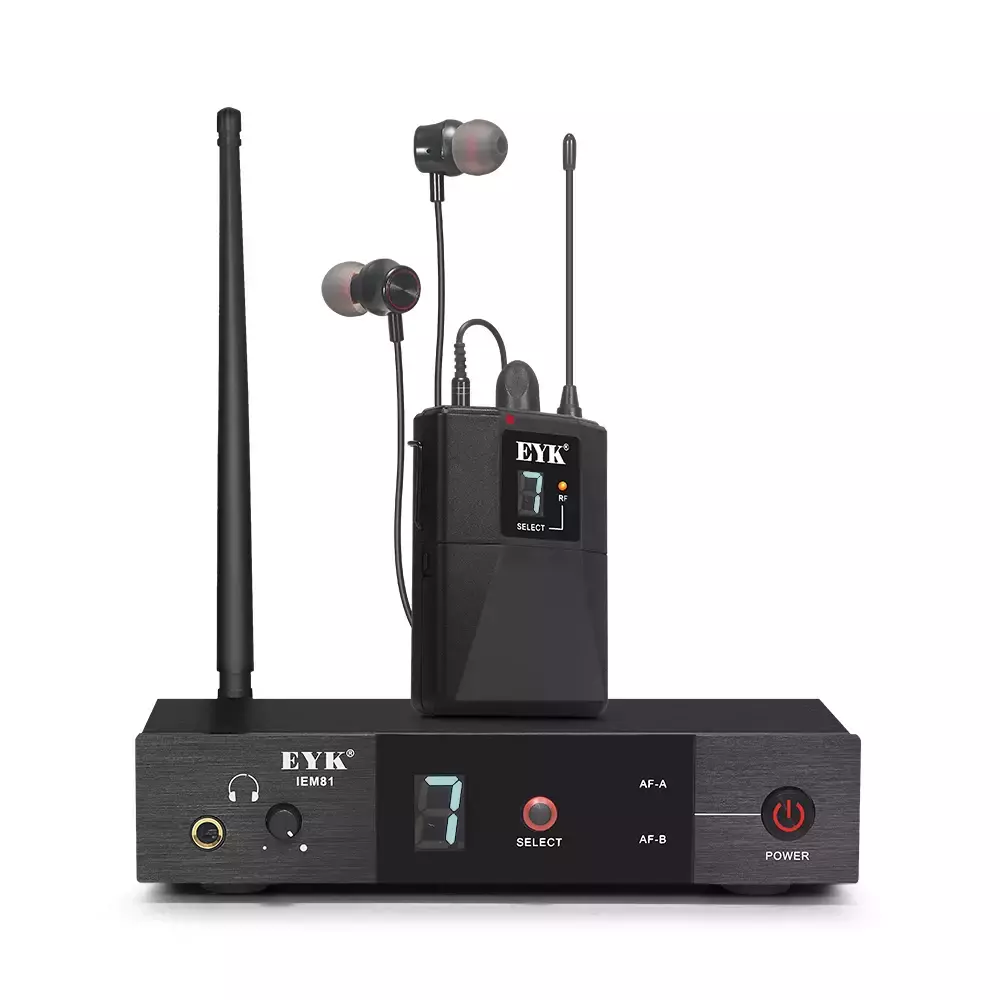

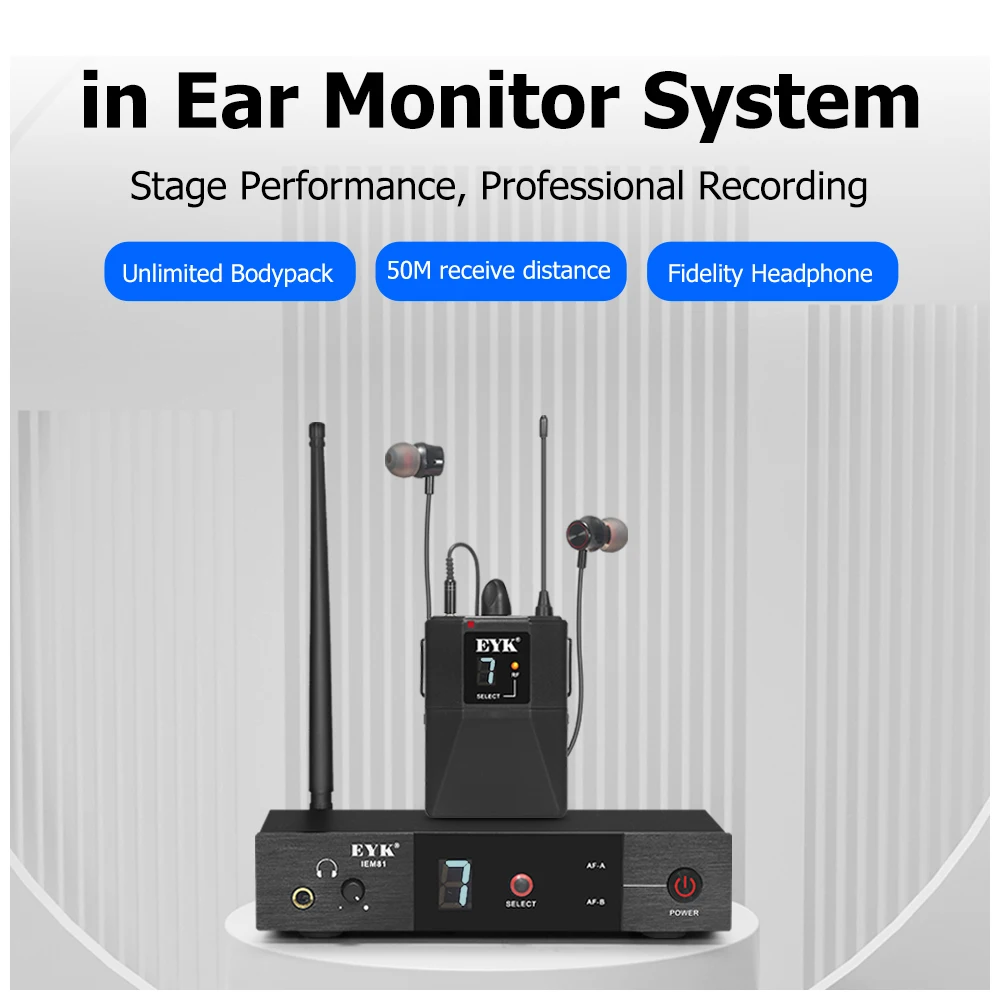

IEM-81
Novo sistema de monitoração EYK, modelo que possui 16 frequências opcionais.
Este produtos é adequado para monitoramento (retorno) em apresentações em palco, gravação de vídeo e monitoramento ao vivo.
Este produto pode ser equipado com um ou mais bodypacks (mesmo modelo), para permitir que vários terminais monitorem um canal simultaneamente.
Product Description?
This wireless in-ear personal monitor system is everything you need for professional in-ear monitoring in any context. It has powerful compatibility features that one transmitter can connect multiple receivers. Meet your group needs and multiple application needs. Transmitter front panel 1/4-inch monitoring has the headphone jack.Used in stage,achieve admirable listening effect.
Key Point?
1. UHF band 600-690MHz, Among the band of 32MHz, the preset 16 frequencies can be switched at will.
2. Dynamic expansion circuit, greatly improve signal-to-noise ratio.
3. Simple LED screen display, brand new design.
4. Receiver: Low power indicator and RF receiving indicator light It needed two 1. 5V AA batteries and efficient power circuit, long service.
5. Transmitter: 6.35mm headphone output, AF signal indicator light, with balanced and unbalanced sharing socket.

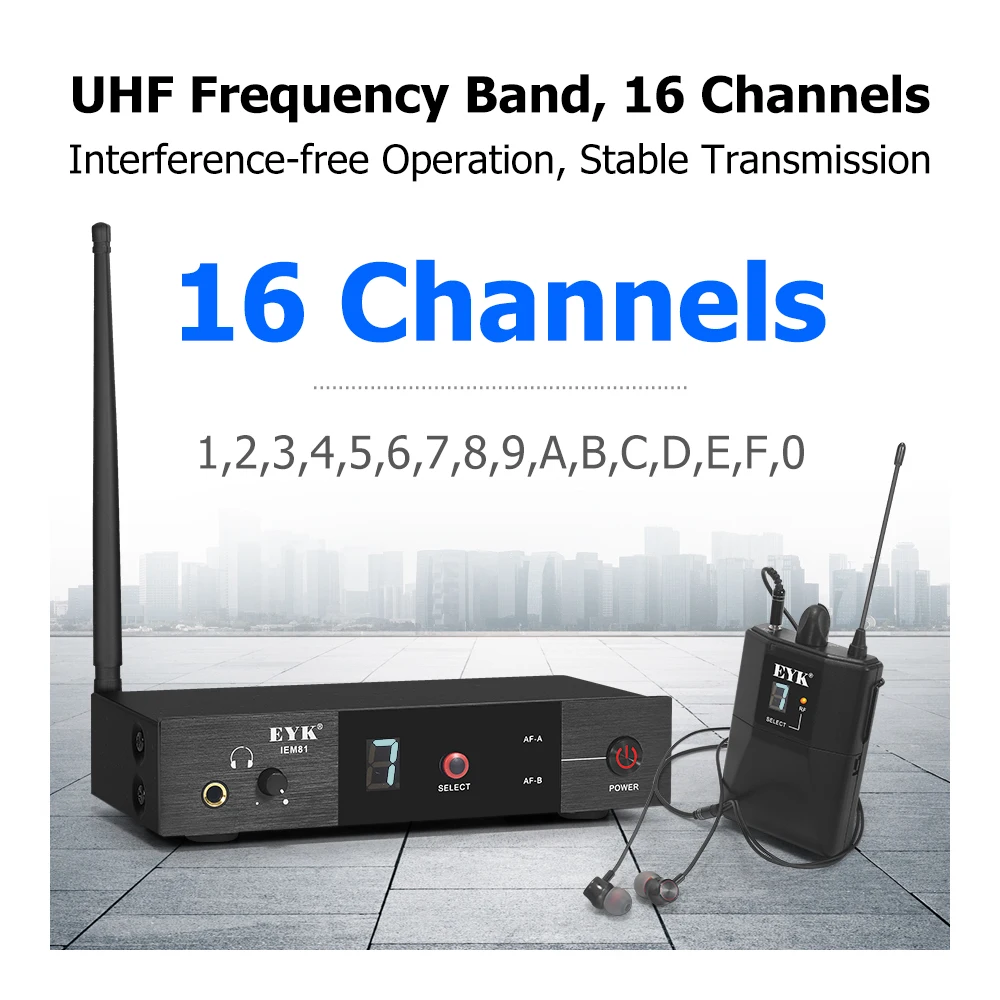

UHF Frequency Band, 16 Channels
Interference-free Operation, Stable Transmission

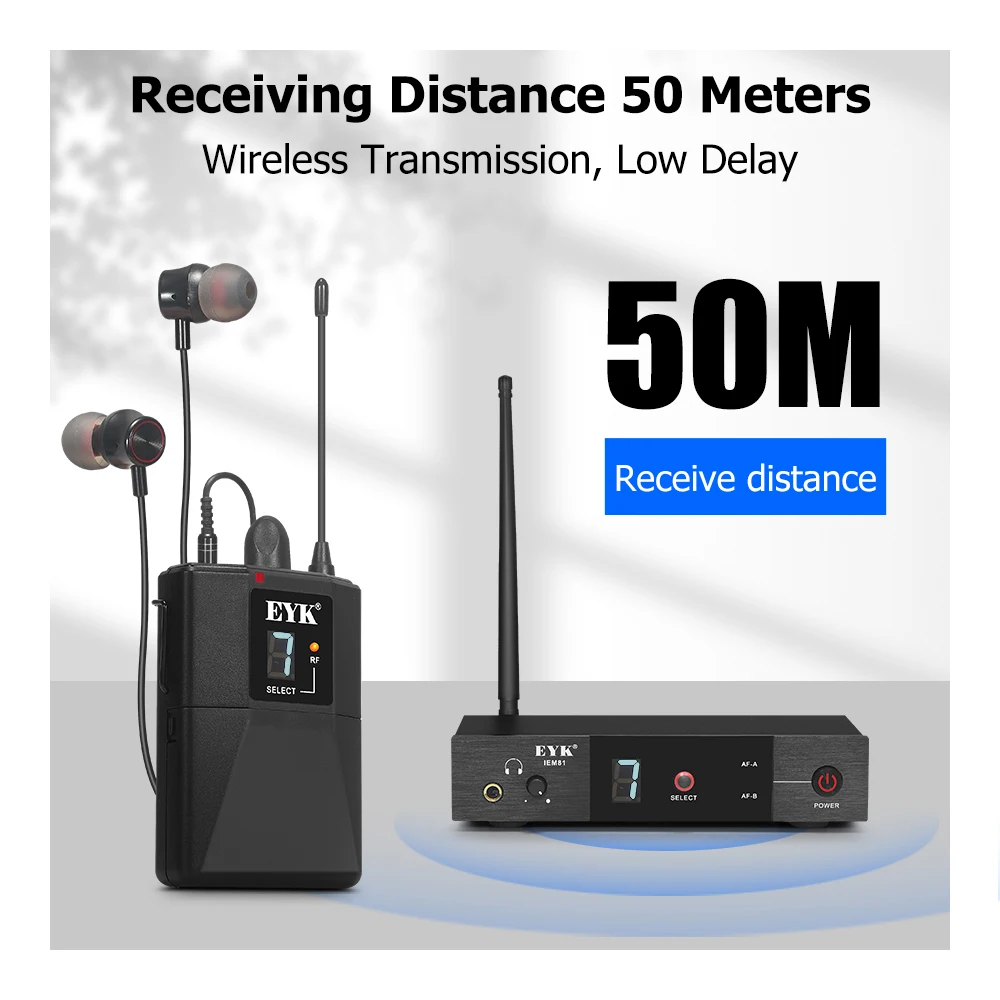

Receiving Distance 50 Meters
Wireless Transmission, Low Delay for perfect performance

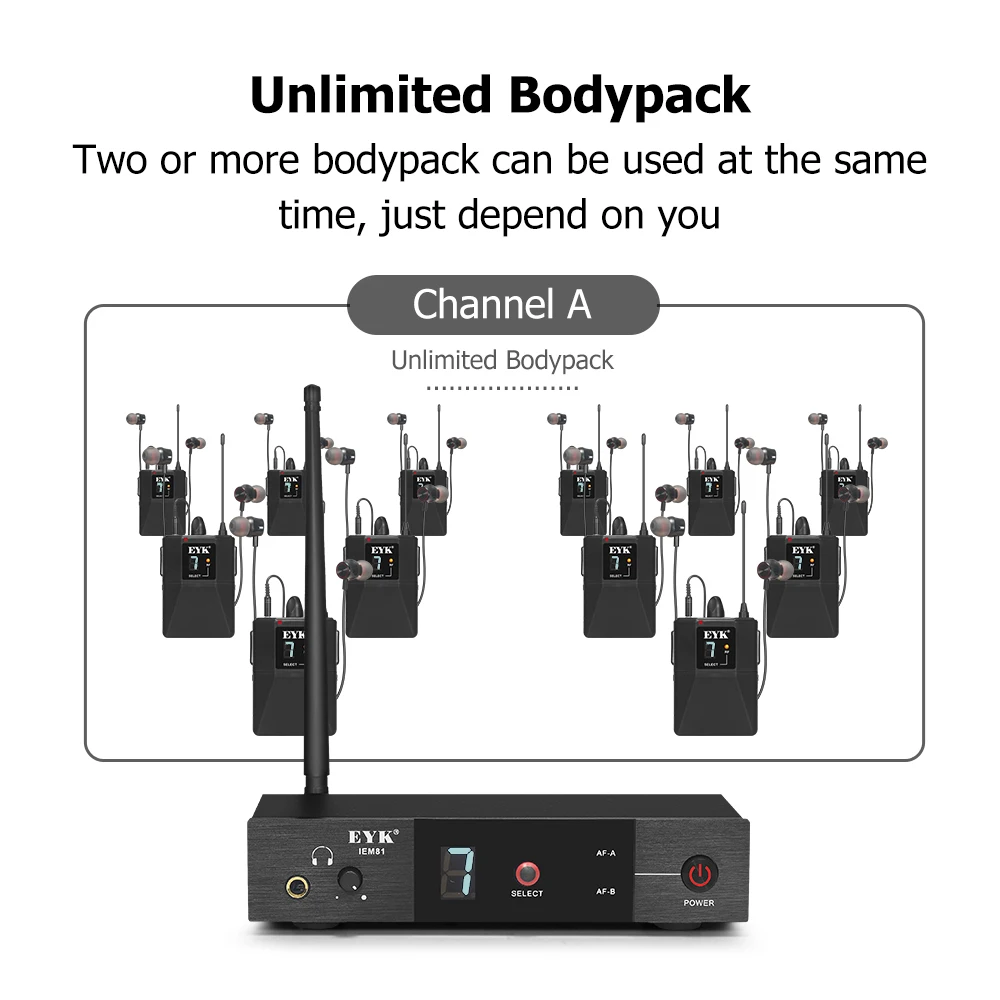

Unlimited Bodypack
Two or more bodypack can be used at the same time, just depend on you

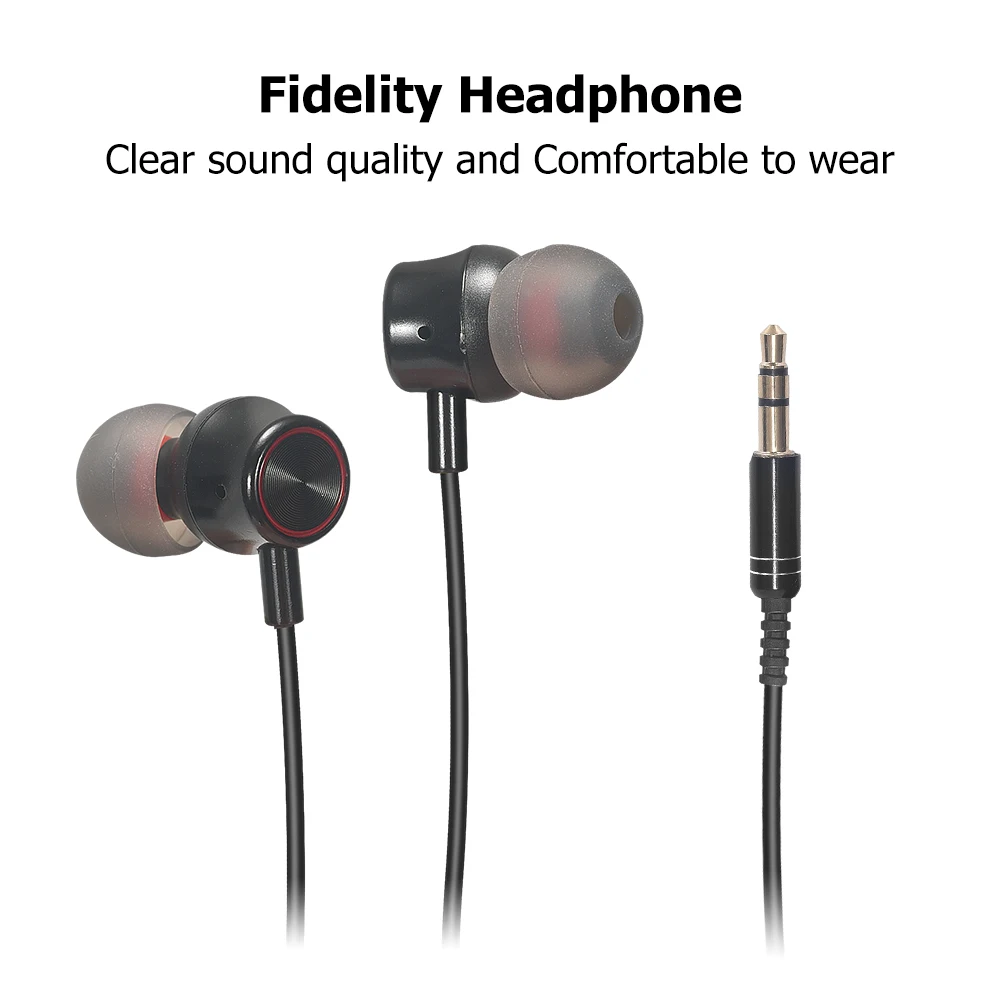

Fidelity Headphone
Clear sound quality and Comfortable to wear

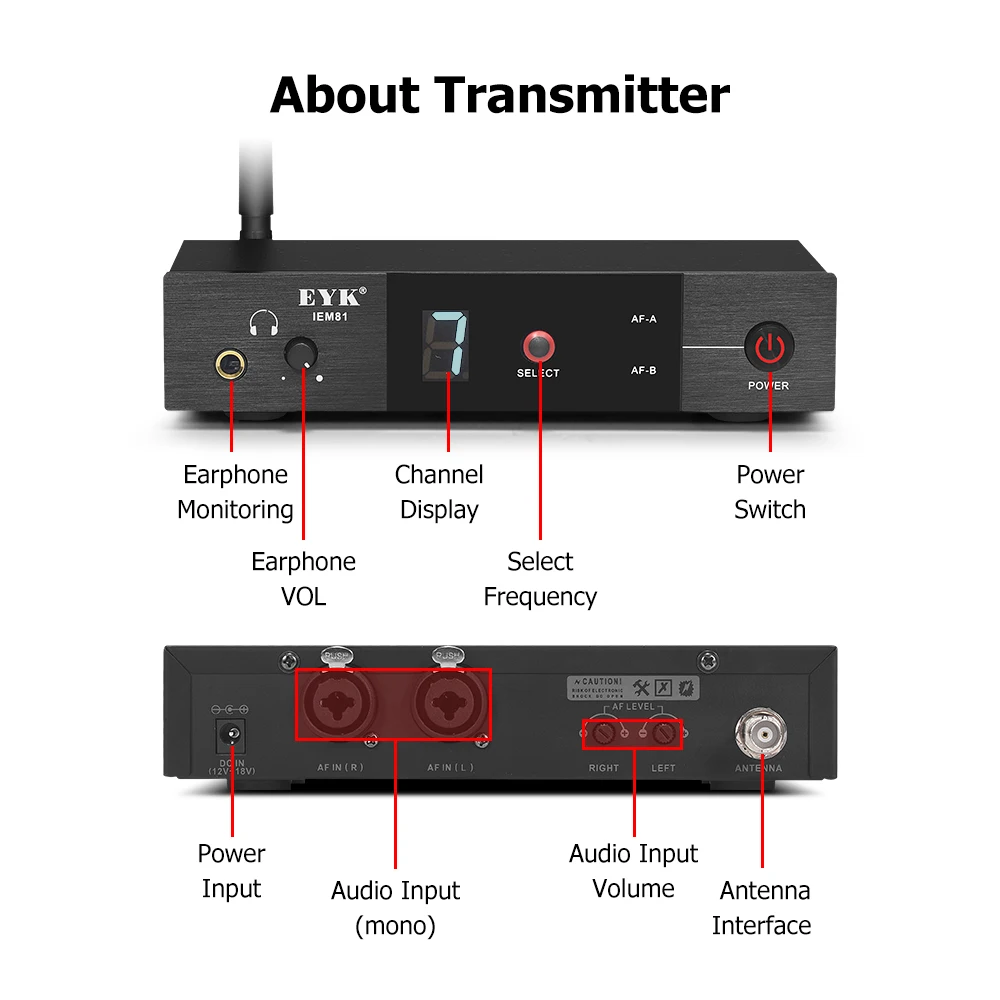

About Transmitter

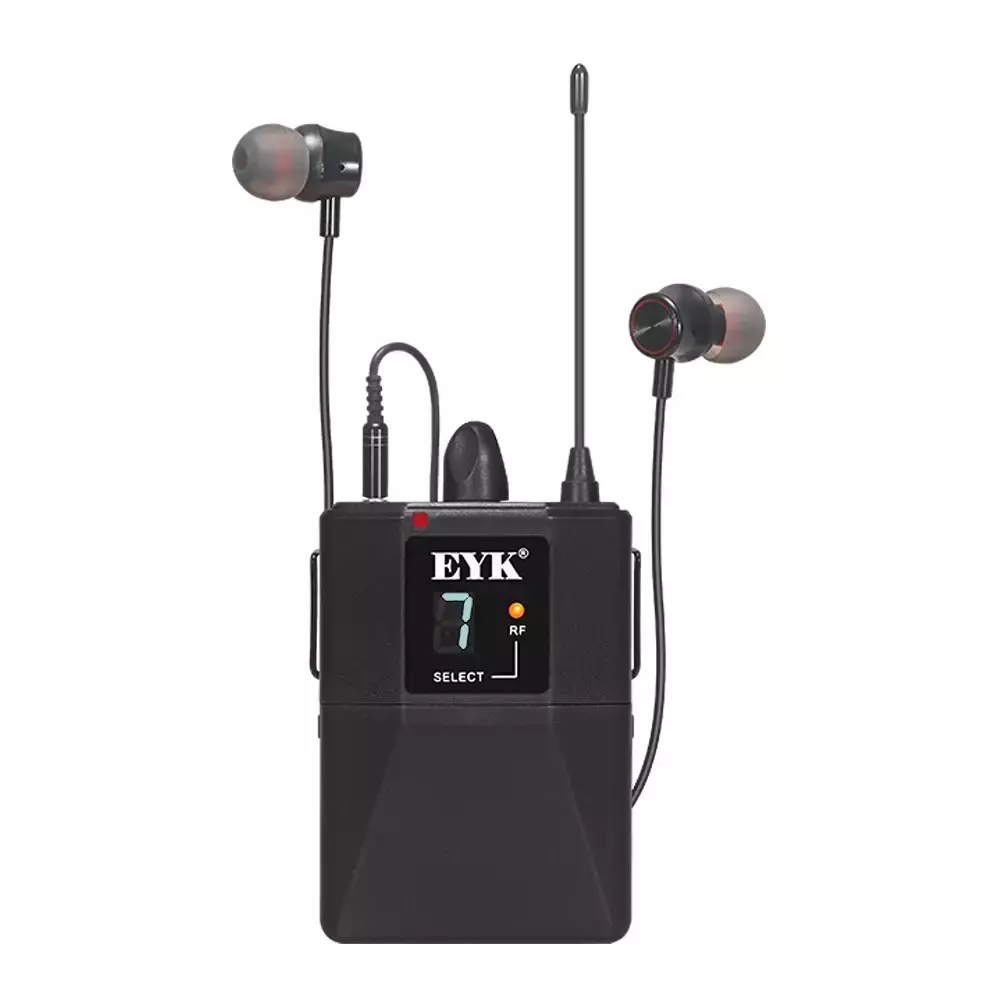

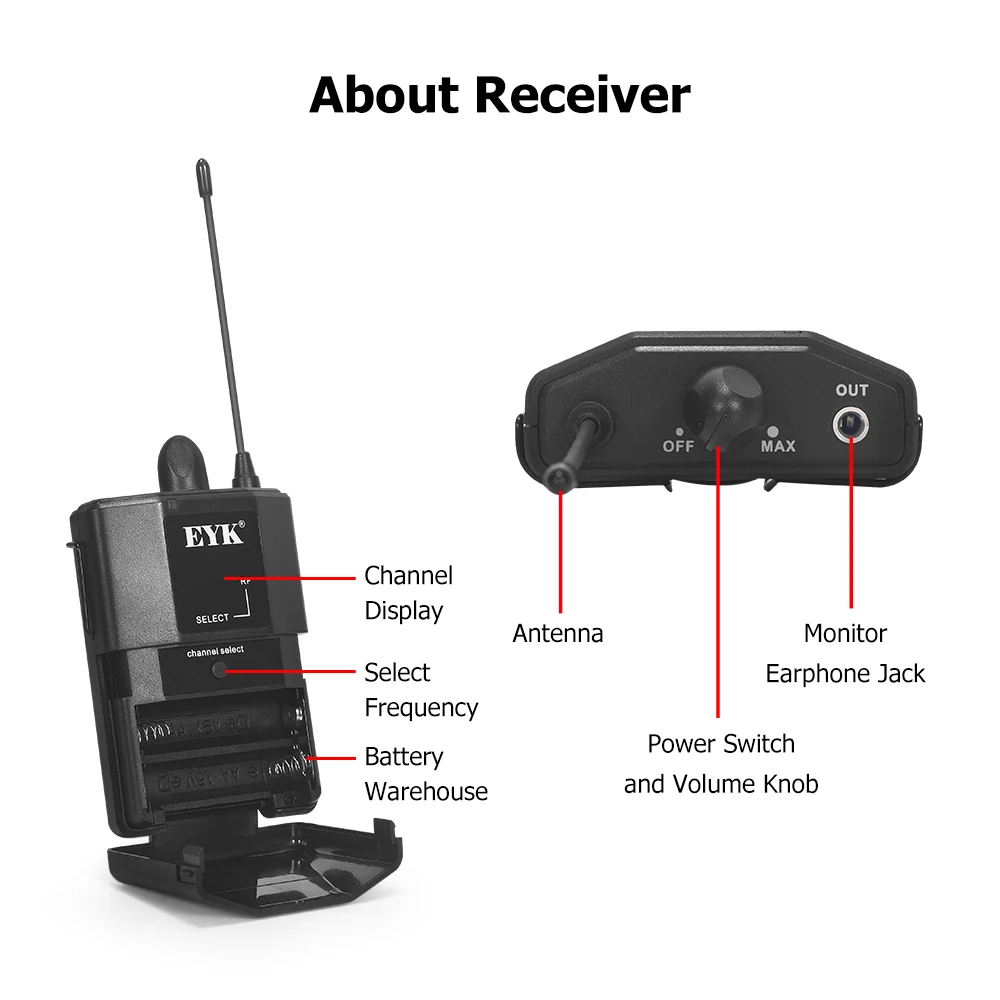

About Receiver
Parameter:
System Parameter:
Style: Mono
Work Frequency: 600-690MHz
Modulation Mode: Broadband FM
Channels: 16
Channel Frequency: 300KHZ
Frequency Stability: ±0.005%
Dynamic Bound: 100dB
Max Excursion: ±45KHz
Frequency Response: 60Hz-18KHz(3dB)
S/N: >105dB
T.H. D: ?0.5%
Operation Distarce: about 50m
Receiving Machine Index:
Antenna: Hand microphone has on in built helix
Antenna Transmitter 1/4 Ware-lergh
Flagelliform Antenna
Sensitivities: 12dBuV(80dB S/N)
Sensitivitive Adjustable Rang: 12-32dBuV
Erratic Control: ?75dB
Max Output Frequency: +10 dBV
Transmitter Index:
Antenna Receive: BNC/50?
Erratic Control: -60dB
Power Supply: DC12V/700mA

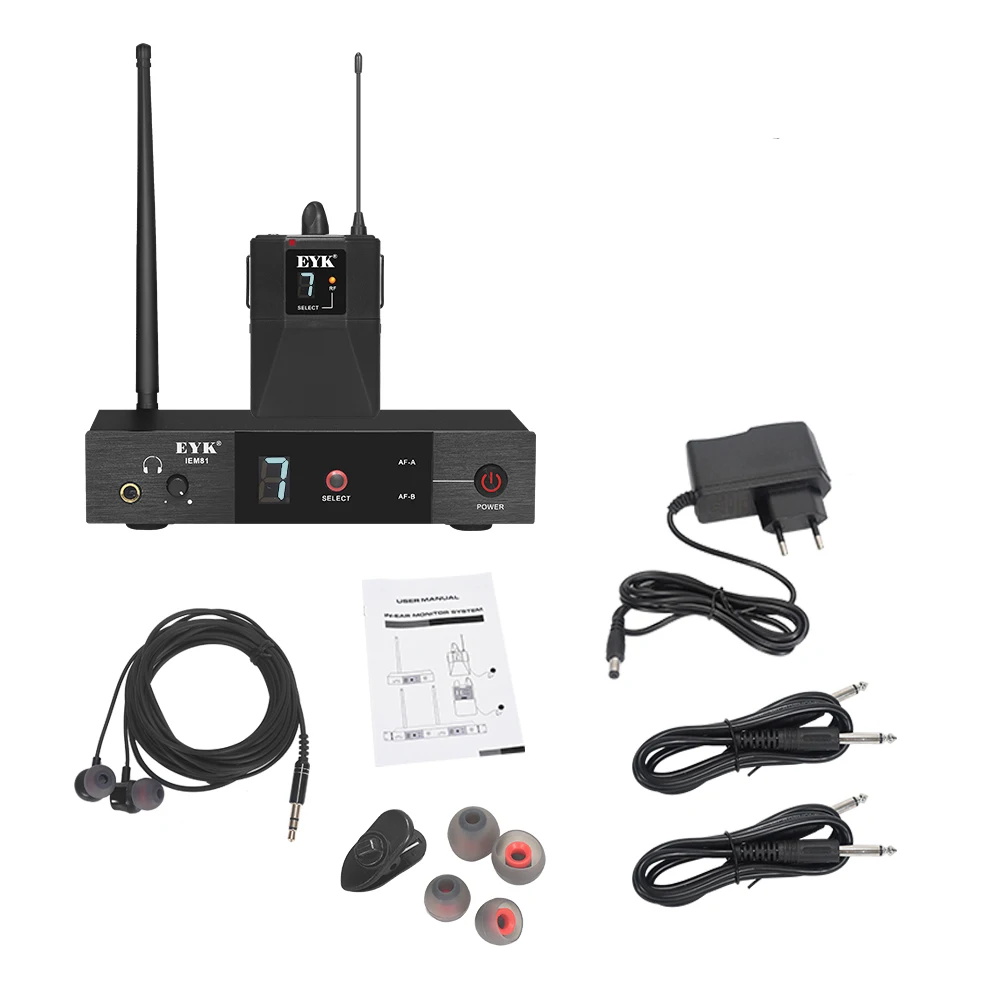

Packing list:
1x Transmitter
1x Receiver
2x Audio Cable
1x Headphone
4x Mic windproof cotton
1x Power adapter
1x User Manual
